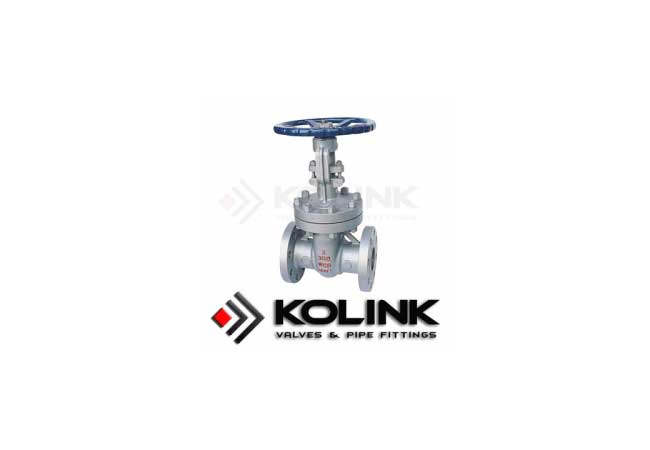

Rising-stem gate valves are used when it is important to know by immediate inspection whether the valve is open or closed and when the threads (stem and gate) exposed to the fluid could become damaged by fluid contaminants. In this design, the stem rises out of the gate valve when the valve is opened.

The wedge gate of the Kolink gate valve provides tight sealing even at low differential pressure. Grooved wedge guided and fitted by body, assures proper and consistent seal regardless of valve position, and also minimizes seat wear and damage, since seating surfaces of the wedge and seat are in contact during less than 5% of the total wedge travel.

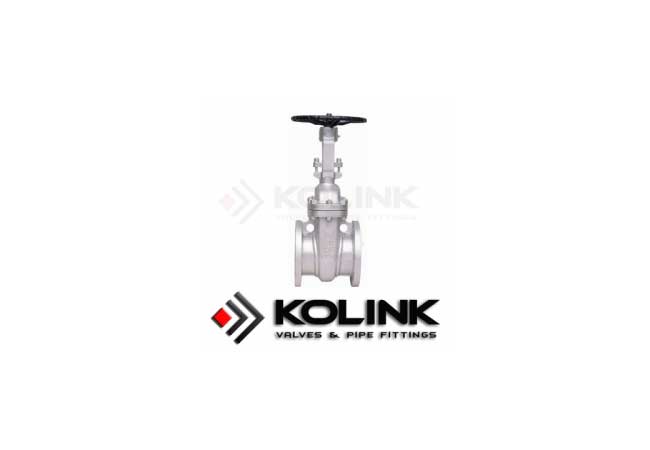

Rising-stem cast steel gate valves are used when it is important to know by immediate inspection whether the valve is open or closed and when the threads (stem and gate) exposed to the fluid could become damaged by fluid contaminants. In this design, the stem rises out of the gate valve when the valve is opened.

The wedge gate of the Kolink gate valve provides tight sealing even at low differential pressure. Grooved wedge guided and fitted by body, assures proper and consistent seal regardless of valve position, and also minimizes seat wear and damage, since seating surfaces of the wedge and seat are in contact during less than 5% of the total wedge travel.

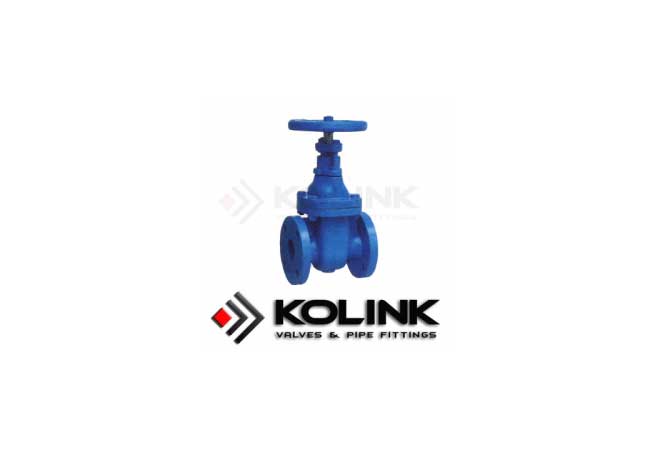

Non-rising stem gate valve is used where vertical space is limited or underground. The stem is threaded into the gate. As the handwheel on the stem is rotated, the gate travels up or down the stem on the threads while the stem remains vertically stationary. This type of valve has a pointer indicator threaded onto the upper end of the stem to indicate the position of the gate.

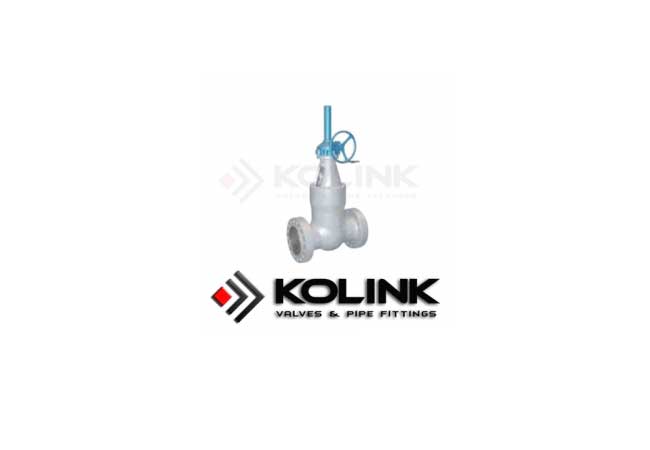

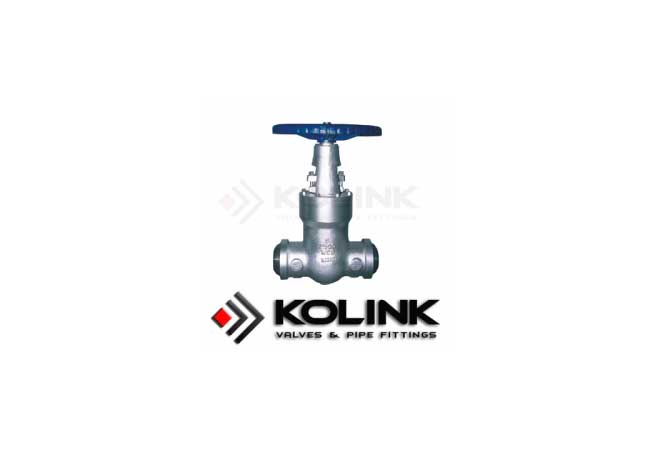

For gate valve with pressure Class 600 / PN100 or higher, Pressure seal bonnet is suggested for better closure, while bolted bonnet is still available for customer's option.

The pressure seal design incorporates a metal-to-metal seal that becomes tighter as the pressure increases. The initial preload deforms the taper on the soft iron gasket to mate with the taper on the bonnet. The thin knife-edge on the gasket is wedged tightly between the body and the bonnet. The shallow angle insures that the gasket is sealed tightly with only a small upward force on the bonnet.

Once the initial seal is created, the body/bonnet joint will remain leak free regardless of thermal or pressure conditions in the valve.After the joint has been assembled, there is no further need to adjust bonnet cap screws.

For gate valve with pressure Class 600 / PN100 or higher, Pressure seal bonnet is suggested for better closure, while bolted bonnet is still available for customer's option.

The pressure seal design incorporates a metal-to-metal seal that becomes tighter as the pressure increases. The initial preload deforms the taper on the soft iron gasket to mate with the taper on the bonnet. The thin knife-edge on the gasket is wedged tightly between the body and the bonnet.

The shallow angle insures that the gasket is sealed tightly with only a small upward force on the bonnet. Once the initial seal is created, the body/bonnet joint will remain leak free regardless of thermal or pressure conditions in the valve.After the joint has been assembled, there is no further need to adjust bonnet cap screws.

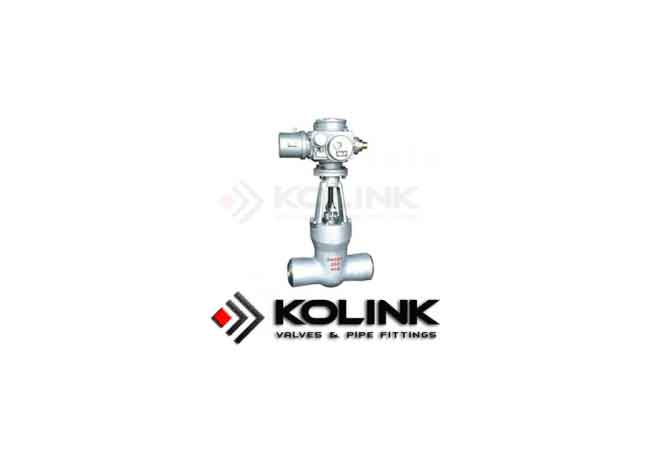

For better operation performance or in hazardous area, actuators are suggested to achieve automation and remote control of gate valves. Basically, actuators includes electric actuators, pneumatic actuators and hydraulic actuators etc. With the help of various accessories, gate valves could work fast and accurately.

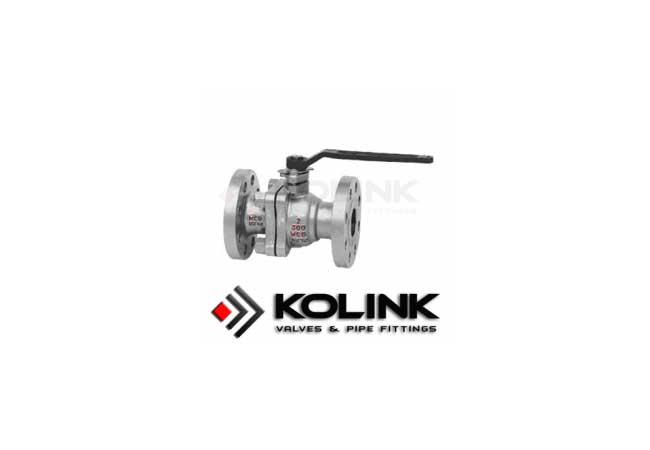

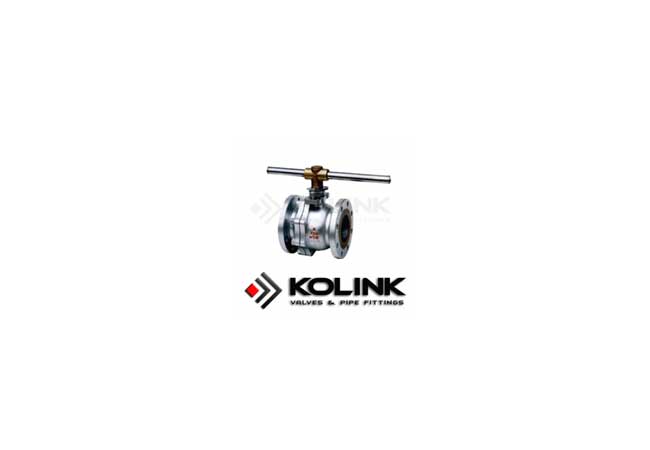

A floating ball valve is a valve with its ball floating (not fixed by a trunnion) inside the valve body, it drifts toward to the downstream side and tightly pushes against the seat under the medium pressure to ensure sealing reliability.

The floating ball valve has simple structure, good sealing performance but the seat material is required to withstand the workload since the sealing pressure is bared by the seat ring. Due to unavailability of high performance seat material, floating ball valve is mainly used in middle or low pressure application.

A floating ball valve is a valve with its ball floating (not fixed by a trunnion) inside the valve body, it drifts toward to the downstream side and tightly pushes against the seat under the medium pressure to ensure sealing reliability.

The floating ball valve has simple structure, good sealing performance but the seat material is required to withstand the workload since the sealing pressure is bared by the seat ring. Due to unavailability of high performance seat material, floating ball valve is mainly used in middle or low pressure application.

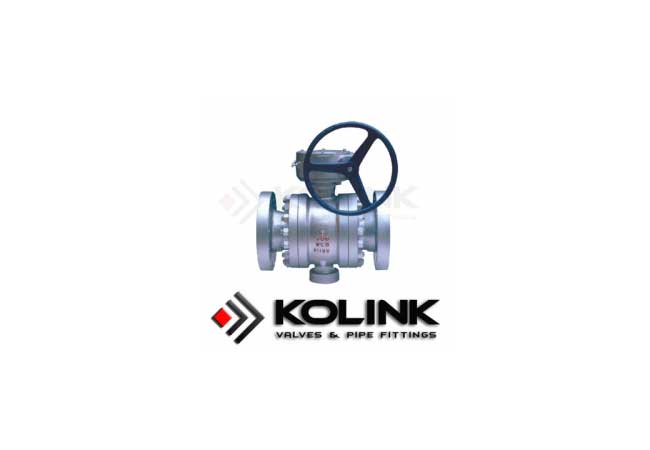

Trunnion mounted ball valves are designed for upstream sealing. The load generated by the line fluid on ball is absorbed by the trunnion bearings and is directly transmitted to the valve body, and the upstream seat driven by medium pressure drifts towards the ball to creater reliable sealing. The seat design has a built-in automatic cavity relief mechanism.

Trunnion mounted ball valves have a bottom entry stem design, where the stem is inserted from inside the body. The higher the line pressure, the tighter the seal. An elastomer seal in the form of an o-ring is located at the lower end of the stem, which provides the first level of protection to the atmosphere. Valves are provided with vent and drain connections for venting/draining of the valve cavity. Vent and drain connections can also be used for on-line affirmation of valve sealing.

When selecting ball valves, utilization of a top entry design, will permit easy access to internal components for service and parts replacement, without having to remove the ball valve from the line. The ability to make quick repairs is especially important at start-up time when valve damage from fabrication debris is most likely to cause expensive down time and project delays.

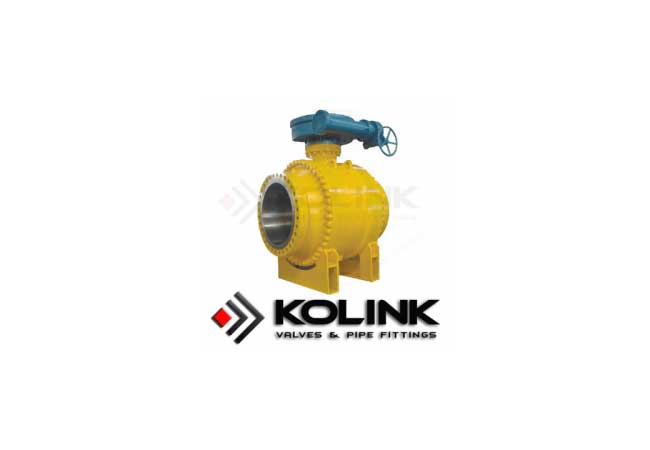

Metal-seated ball valves are introduced when the temperature and pressure rating of fluids override the limit of traditional PTFE-seated ball valves. Metal-seated ball valves combine the advantage of both gate valves and PTFE-seated ball valves, and are recommanded in some extreme conditions.

The Manufacturing and maintenance of metal-seated ball valves are challenging, because of the difficulty of matching arc sealing faces of seats and balls. Both seats and balls are normally hardened to avoiding the scratches in use.

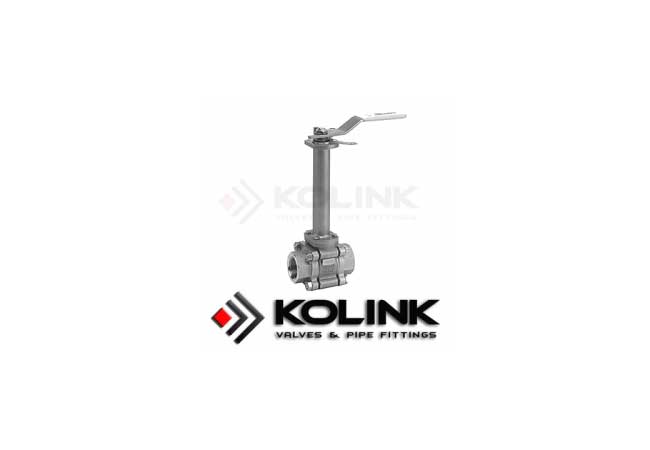

Applications such as liquefied natural gas and other low temperature fluids, present special extreme temperature valve functionality challenges. Valves designed for cryogenic services, are specially prepared and designed to overcome these challenges. Appropriate component materials such as 304SS (CF8) and 316SS (CF8M) are normally used for body and trim, offering superior impact strength, and excellent corrosion resistance and heat loss properties. An extended bonnet and gas column design is also normally adopted to provide thermal insulation at the stem seal and stem packing area. At sufficient length, this design feature places the functionality of the stem seal in the vapor zone of the liquid media providing safe and continuous valve operation. A variety of body, trim, seat, and seal materials are available for use in cryogenic service. Customer specified options, such as body cavity vent hole, special extension lengths, and materials are also available upon request.

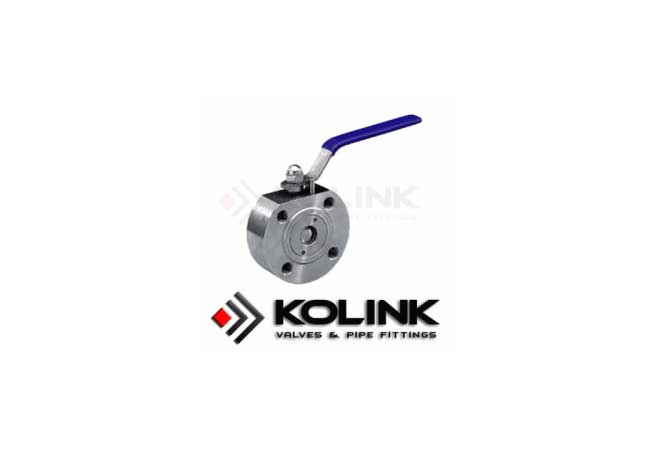

The wafer ball valve is ideally suited to applications where space is at a premium. Wafer ball valve is normally one-piece design and floating ball type, and are available in both cast and forged body, full and reduced bore configurations and, although intended for manual operation, actuation can be accommodated on certain sizes.

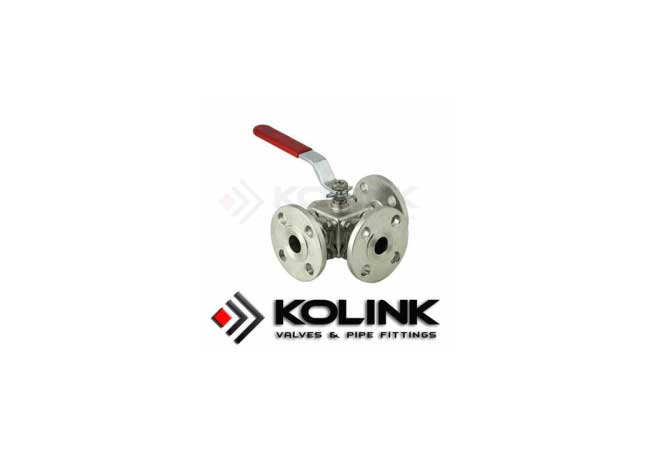

3-way ball valve / 4-way ball valve

Three-way ball valve have an L- or T-shaped hole through the valve, to create multi-directional medium switch.

Moreover, multi-port ball valves such as 4 ways or more, are also available, the inlet way often being orthogonal to the plane of the outlets. For special applications, the operation is performed by rotating a single lever 4-way ball valve. The 4-way valve has two L-shaped ports in the ball that do not interconnect, sometimes referred to as an "×" port.

Floating Ball or Trunnion Mounted Ball
2-Piece or 3-piece Body
Full Port or Reduced Port
Fire Safe to API 607
Antistatic Design
Anti-blowout Stem

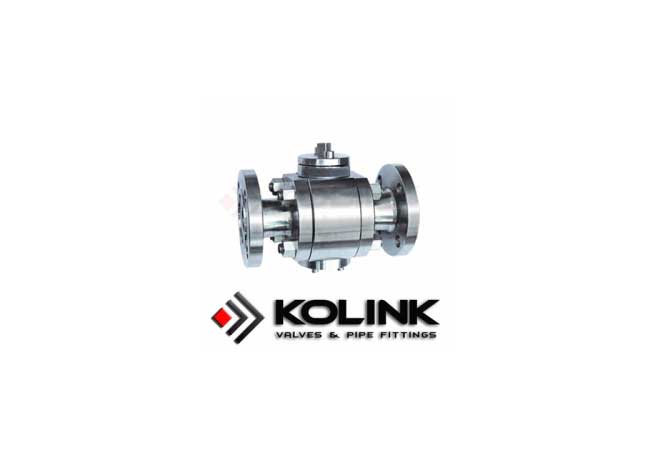

Stainless Steel Body & Ball for Corrosive Environment
