Silos
Windsor has an exclusive supply arrangement with the Italian manufacturer Mion & Mosole to supply their wood fuel storage silos in NZ and Australia.

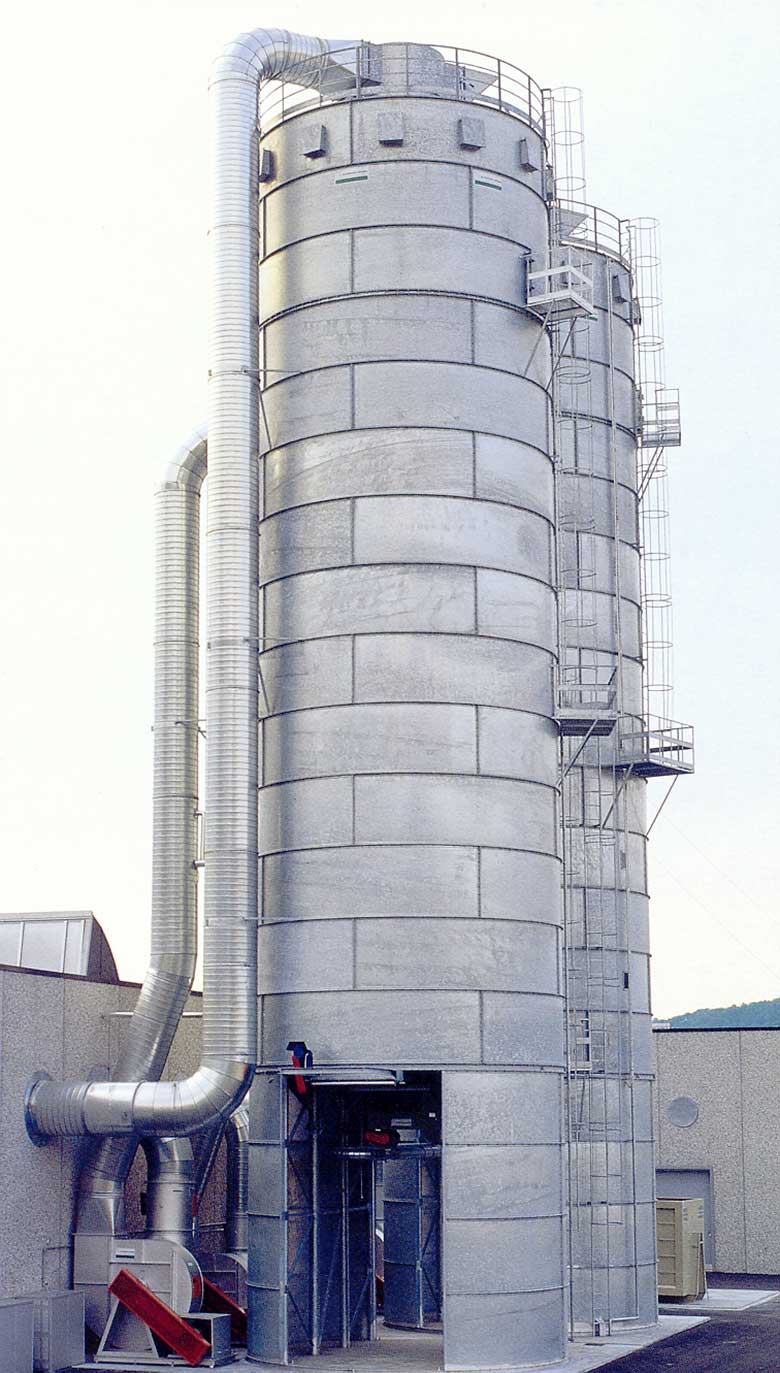

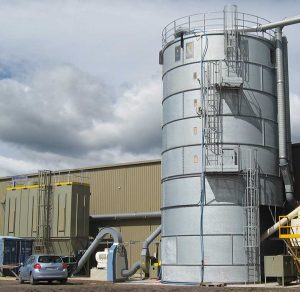

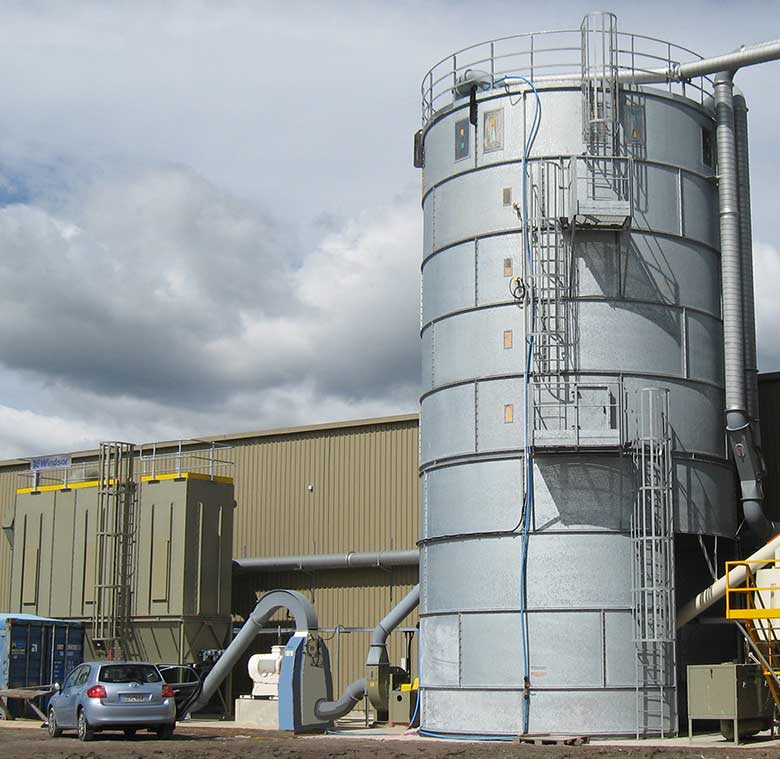

They come in a range of sizes and discharge configurations, transport and assembly are straightforward, the silos are assembled from the ground up by simply bolting the zinc plated steel rings together.
Available silo capacity ranges from a nominal 50 m3 to 1000 m3.
Diameters vary from 4 to 8 metres.
Depending on the nature of the wood waste and the locality, the silos can be pneumatically or mechanically filled.
For pneumatic transfer, they can be provided with cyclones or a silo top filter.
Access ladders, explosion venting, level sensing and over temperature protection are provided as standard.
Outfeed is by a silo rotary screw, feeding through a rotary valve and bridge breaker into either a mechanical conveyor or metering screw.
Truck dump unloading facilities are also available.

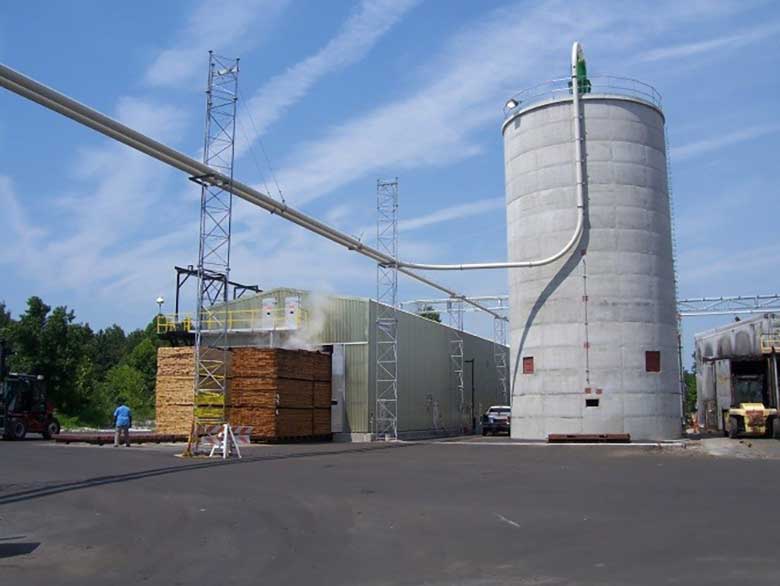

For our North American customers, we offer a range of concrete silos please contact us for further information.
Please contact our Wellington office for further assistance >
