Filter media - Windsor

Filter Media

Non-woven filter materials

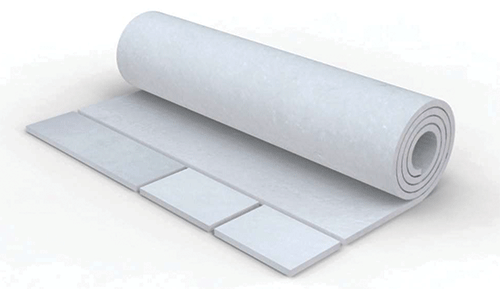

Filter media is available by the roll and cut to size.

Available as a roll, lineal metre or cut to your specific size, we package the material and ship nationwide.

The foundation of our handmade air filter products is the consistent quality of Deltrian’s non-woven filter media.

To satisfy industry demand, we stock a wide variety of media grades (EU2 – M5) in three locations across New Zealand.

This non-woven filter material is used in all of our handmade filters from the AL50, AL22, AL11, EM, EMD and FMP filter ranges.

The media is washable for a number of cycles then can easily be replaced in-situ or by the team at your nearest Windsor Filtration operation.

Please contact our Auckland or Christchurch office for further assistance >

POLY100 Filter Media series

ISO Coarse 40% ISO 16890 / G2 EN779:2012

Use:
Primary ﬁltration for air treatment in ventilation and air conditioning.

Efﬁciency:
ISO Coarse 40% ISO16890 / G2 EN779:2012

Media:
Thick synthetic with progressive density

Final pressure drop : 250 Pa
Maximum T° in continuous service : 110° C
Humidity : 100 % RH

Applications

• Industrial HVAC air intakes.
• Ventilation systems.
• Machine rooms.
• Chemical and pharmaceuticals.
• Dairy industry, food industry
• Turbomachinery

Features

• Windsor cutting service
• Low pressure drop
• Mechanical resistance
• Progressive density
• High retention power

POLY-150, POLY-80M1, POLY-200 Filter Media series

ISO Coarse 50% ISO 16890 / G3 EN779:2012

Use:
Primary ﬁltration for air treatment in ventilation and air conditioning.

Efﬁciency:
ISO Coarse 65% ISO16890 / G4 EN779:2012

Media:
Thick synthetic with progressive density

Final pressure drop : 250 Pa
Maximum T° in continuous service : 110° C
Humidity : 100 % RH

Applications

• Industrial HVAC air intakes.
• Ventilation systems.
• Machine rooms.
• Chemical and pharmaceuticals.
• Dairy industry, food industry
• Turbomachinery

Features

• Windsor cutting service
• Low pressure drop
• Mechanical resistance
• Progressive density
• High retention power

POLY-300, POLY-350 Media series

ePM10 50% ISO 16890 / M5 EN779:2012

Use:
Primary ﬁltration for air treatment in ventilation and air conditioning.

Efﬁciency:
ePM10 50% ISO16890 / M5 EN779:2012

Media:
Thick synthetic with progressive density

Final pressure drop : 300 Pa
Maximum T° in continuous service : 110° C
Humidity : 100 % RH

Applications

• Industrial HVAC air intakes.
• Ventilation systems.
• Machine rooms.
• Chemical and pharmaceuticals.
• Dairy industry, food industry
• Turbomachinery

Features

• Windsor cutting service
• Low pressure drop
• Mechanical resistance
• Progressive density
• High retention power

POLY-500, POLY-600 Media series

ePM 50% ISO 16890 / G4 EN779:2012

Use:
Primary ﬁltration for media area treatment, car and furniture manufacture.

Efﬁciency:
ePM10 50% ISO16890 / M6 EN779:2012

Media:
Thick synthetic with progressive density

Final pressure drop : 450 Pa
Maximum T° in continuous service :
100°C / 120°C
Humidity : 100 % RH

Applications

• Industrial HVAC air intakes.
• Ventilation systems.
• Machine rooms.
• Chemical and pharmaceuticals.
• Dairy industry, food industry
• Turbomachinery
• Car & furniture manufacture

Features

• Windsor cutting service
• Long lifetime
• Low pressure drop
• High mechanical resistance
• Impregnation in the core of the media prevents any release of particles > 5 µ
• Reinforced media on clean air side, ensuring the media holding and stability through time
• Self-extinguishing media according to DIN 53438-F1
• European standard, and UL900-class 1 American standard
• Approved by major car companies
